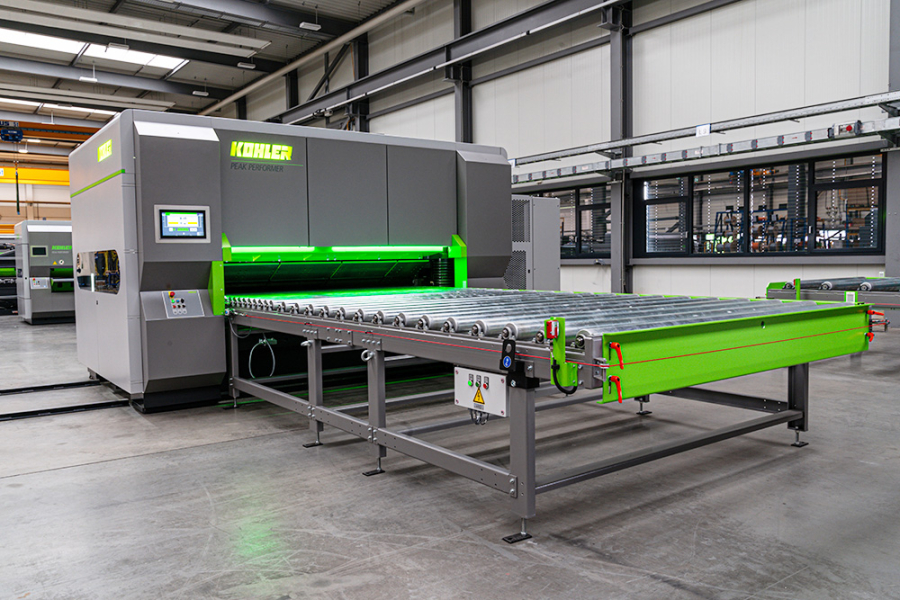

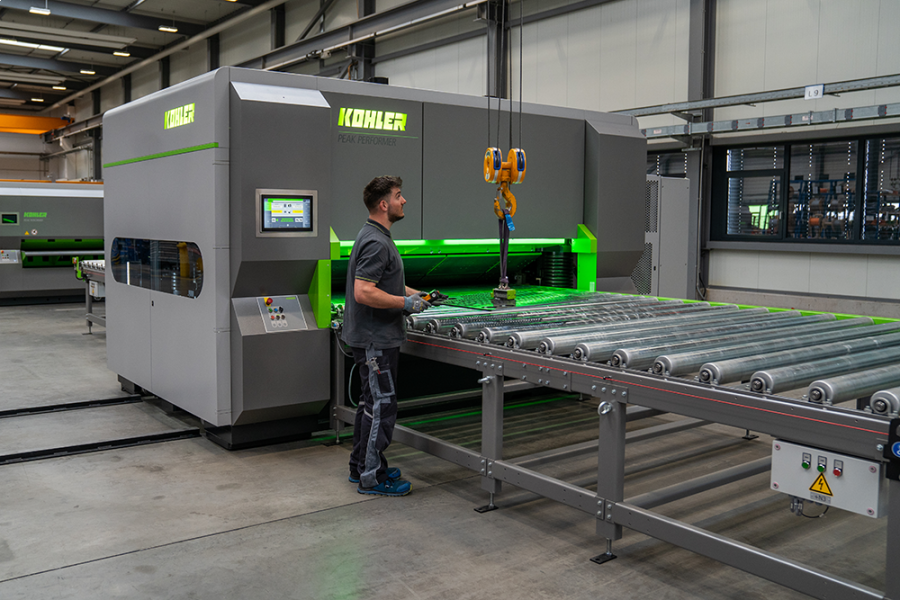

Peak Performer 90P – The New Part Leveling Machine from KOHLER
Sleek, energy-efficient machine concept meets functional industrial design
The new Peak Performer 90P part leveling machine from KOHLER sets new standards in energy efficiency, user-friendly maintenance, and precision. Developed for precise sheet metal leveling technology, it combines a compact machine concept with innovative technologies – completely without hydraulics.
Tensions and unevenness in sheet metal directly affect processes such as cutting, punching, bending, or welding. The Peak Performer 90P levels sheets with exceptional precision – for low-stress and flat parts that can be optimally processed further.
The machine is suitable for material thicknesses from 1.0 mm to 28 mm and throughput widths up to max. 2500 mm. It features an optimized drive system, delivering better power flow and increased drive torques while maintaining consistent performance.
Highlights of the Peak Performer 90P
at a Glance
- Levels sheets up to 2,500 mm width and from 1.0 mm to 28 mm thick
- Minimum part length reduced by around 40% for greater flexibility
- Servo-electronic system without hydraulics – low-maintenance and environmentally friendly
- Up to 75% energy savings compared to conventional hydraulic leveling machines
- Patented electromechanical dynamic leveling gap control for consistent leveling results
- Reversible leveling rollers – longer service life with less wear (optional)
- Advanced cleaning system for quick and easy cleaning (optional)
- Intuitive operator guidance with the Expert-Calculation-System
- Functional, compact design – saves space and reduces transport costs
Maintenance-Friendly & Resource-Saving Parts Leveling Machine
with Reduced Energy Consumption
The 90P's servo-electronic concept with group drive and electromechanical dynamic leveling gap control makes all the difference: compared to conventional hydraulic machines, you save up to 75% energy – a real advantage for sustainable sheet metal processing.

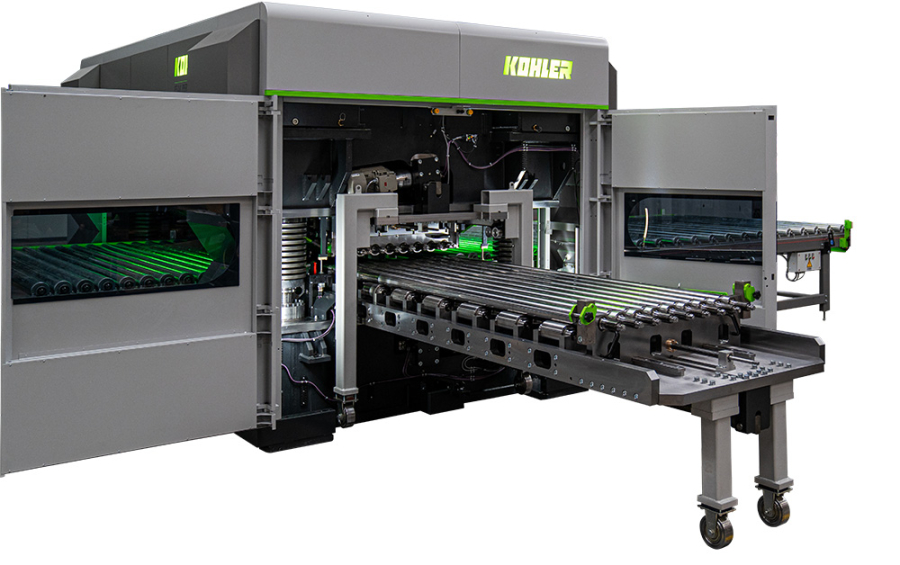

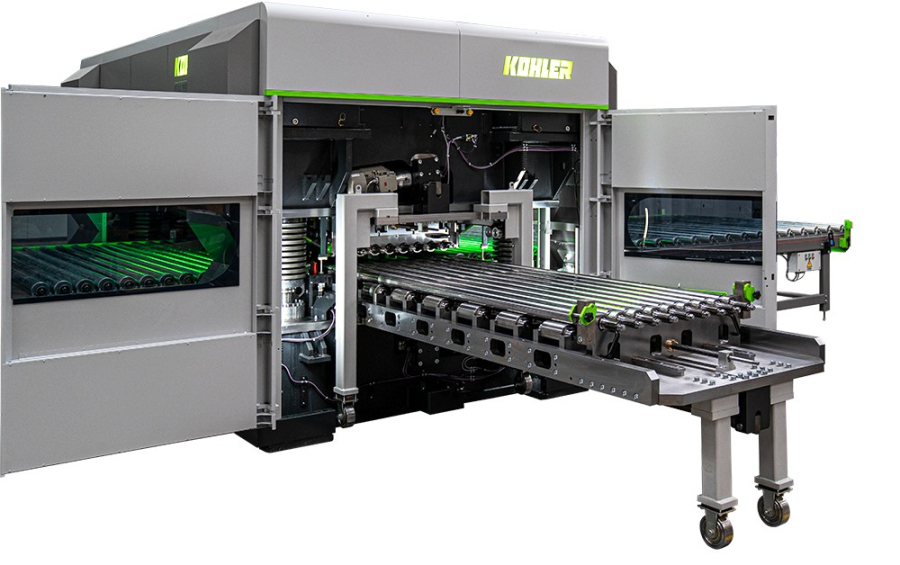

The new machine concept reduces spare and wear parts, which saves operating costs and time for extensive maintenance work. Thanks to improved accessibility and the optionally available advanced cleaning system, the machine can be cleaned quickly and efficiently.
The reversible leveling rollers, developed and patented by KOHLER and optionally available, prevent one-sided wear and increase the service life of the leveling rollers – saving costs and conserving resources.
Functional Design with Added Value

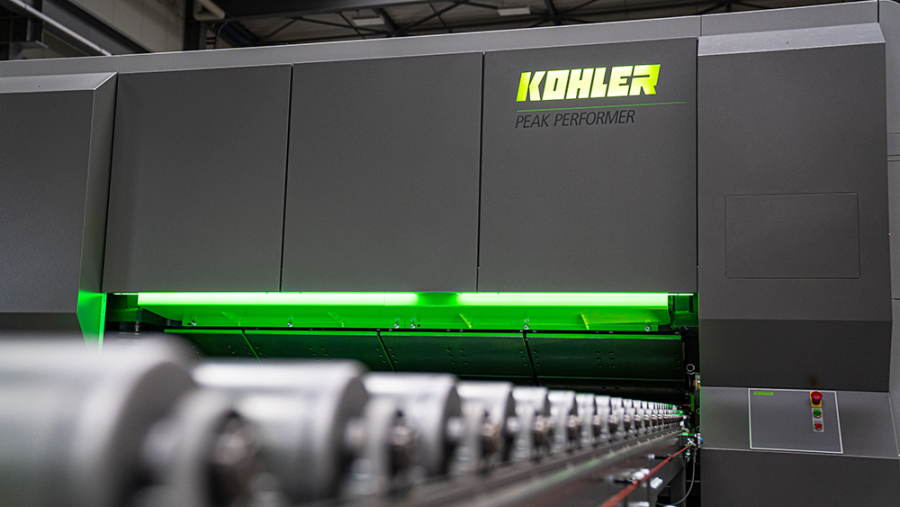

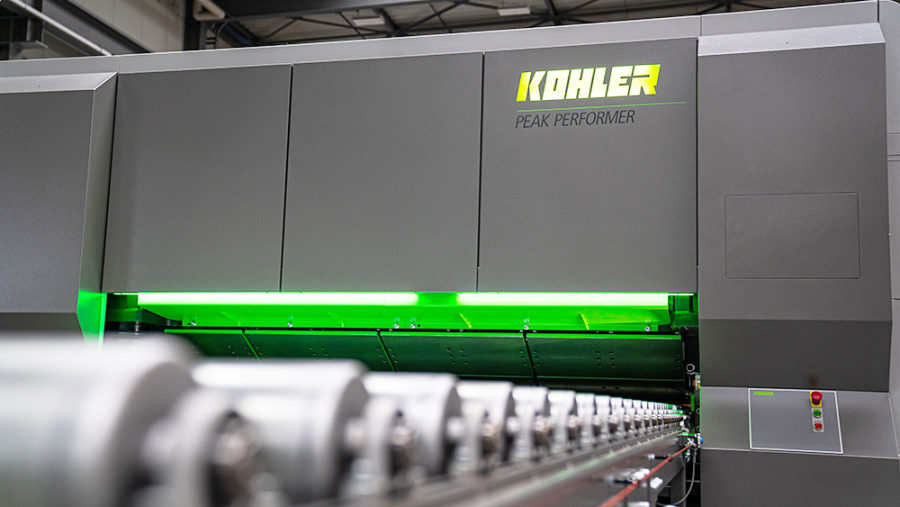

The modern, sleek machine housing reduces the space requirement by approximately 6%, eliminating the need for special transport with an escort vehicle. The integrated machine lighting indicates the operating status via a color signal – green for a smooth leveling process, red for an error message.
